R500-PLTE Series
Ruggedized Router

2023 - 09 - 28

The R500-PLTE router with the Cradlepoint NetCloud Service for IoT is a purpose-built, low-cost User Equipment (UE) networking solution with industry-leading features for Private Cellular Networks (PCN). It is a compact, ruggedized solution for deployments in manufacturing, distribution, transportation, education, and others taking advantage of the lower fixed operating costs, enhanced data security, and improved network performance a PCN provides.



Ideal for Private Cellular Networks



The R500-PLTE is purpose built for PCN deployments. It is an FCC Part 96 authorized end-user device for Band 48 OnGo CBRS networks providing a competitively priced compact and ruggedized PCN UE solution. The R500-PLTE accommodates a wide range of environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.



Ruggedized IoT Solution



The R500-PLTE includes advanced connectivity options with a Cat 7 LTE-Advanced modem, gigabit Ethernet, Wi-Fi 5, GPIO ports, and GPS. It provides a ruggedized enterprise class networking platform that can be confidently deployed in environments such as smart cities, mining, oil and gas, shipping ports and logistics, as well as education for students and teachers. Combined with NetCloud Service for IoT, the R500-PLTE delivers complete visibility, security, and control together with health and status alerts on security posture, network conditions, and usage for connected devices anywhere.

Product Page
NetCloud Service
Quick Start Guide

Notable Features

  • Deploy a competitively priced value-driven Private LTE (PLTE) networking solution with industry-leading features
  • Define policies through centralized cloud-based management for easy deployment at scale
  • Use an FCC Part 96 authorized end-user device for Band 48 OnGo CBRS networks
  • Install a compact and ruggedized router in a wide range of environments where connectivity must be reliable
  • Deploy Wave 2 dual-band, dual-concurrent Gigabit Wi-Fi for the best possible connections
  • Add a second cellular modem, with an Extensibility Dock, for multi-link capability to both the private and public network
  • Expand with custom solutions using GPIOs, NetCloud SDK and API, and NetCloud Edge Connector for Azure IoT Central

Notice: All specifications subject to change without notice.

Key Software Capabilities

Cradlepoint NetCloud Service provides powerful centralized management for every Cradlepoint cellular-enabled router, including the R500-PLTE. NetCloud Service allows customers to build and manage wireless WANs with complete lifecycle management, zero-touch deployment, robust security, and traffic management for optimal application performance and reliability. The cloud capabilities include group policy definition, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as the router has an active subscription, online training, live and online support, and software and firmware updates.

Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to the NetCloud Service and available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest version just a click away. Straightforward subscription and license management is provided to keep the network running without interruption.

Cradlepoint Verify Mobile Application

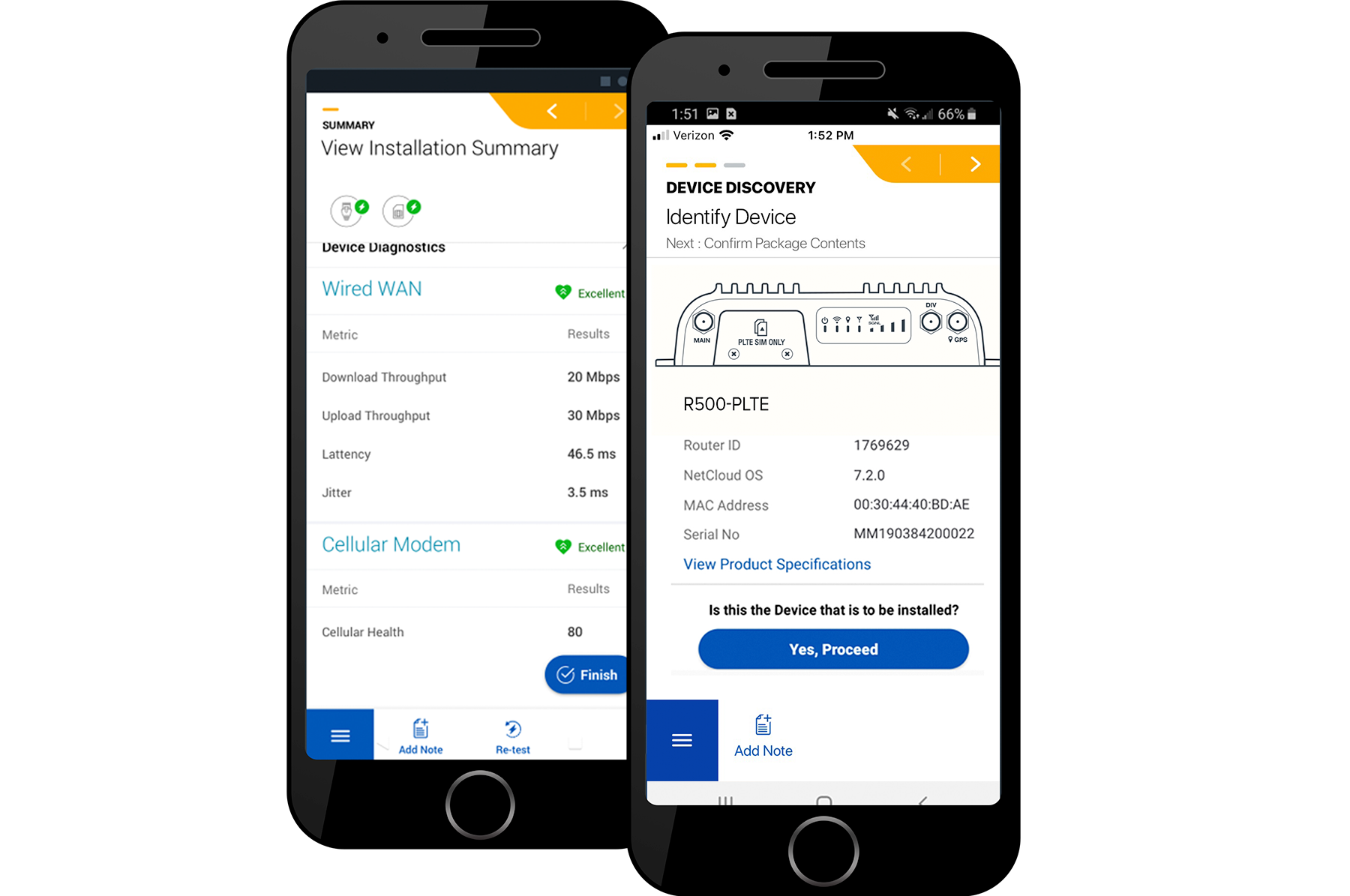

As an extension to NetCloud, Cradlepoint Verify is a mobile application that simplifies setting up Cradlepoint endpoints with easy, customized steps specific to the R500 router. Upon a verified installation, users receive a detailed report that includes installation pictures, speed test results, and modem health metrics.

Connection Manager

Connection Manager provides the ability to manage all WAN connection types including wireless, Wi-Fi-as-WAN, and wired, from a single software-defined policy. Our proprietary modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Cloud Services

NetCloud Manager delivers zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can gain insights and analytics required for rapid troubleshooting and diagnostic workflows. Location services provides last known map location and geofence alerting for loss prevention and physical security.

Hardware Specifications

The following features are delivered through the hardware.

    INTERFACES

    Modem:

    Embedded Category 7 Advanced LTE modem

    • Dual SIM slots, mini 2FF form factor
    • 2 x SMA cellular antenna connectors



    Optional dual modem

    • MC400 Modular Modem with optional COR Extensibility Dock

    Ethernet:

    2 x GbE RJ45 (LAN/WAN switchable)

    Wi-Fi:

    Dual-band, concurrent operation (2.4 GHz & 5 GHz)

    • 802.11ac Wave 2 with up to 256 QAM
    • 2 x RP-SMA Wi-Fi antenna connectors
    • Modes: WPA/WPA2/WPA3 Personal, WPA2/ WPA3 Enterprise, WEP Auto, Open

    Expansion:
    • USB 2.0 Type A (Output: 5 V, 500 mA, 2.5 W)
    • GPIO 2-wire (combined with power cable)
    • COR Extensibility Port
      • COR Extensibility Dock (optional)
      • COR Extensibility 9-Wire GPIO Cable (optional)
      • COR Serial Cable Adapter (optional)

    GNSS/GPS:

    1 x SMA GNSS antenna connector

    ENVIRONMENTAL

    Temperature:
    • Operating: -30 °C to 70 °C (-22 °F to 158 °F) with included standard AC power supply
    • Storage: -40 °C to 85 °C (-40 °F to 185 °F)

    Humidity (noncondensing):
    • Operating: 5% to 95%
    • Storage: 5% to 95%

    Ingress Protection:

    IP54 (dust protected and splashing water)

    POWER

    Required:

    DC input steady state voltage range: 9–33 VDC (requires in-line fuse for vehicle installations)

    • For 9–24 VDC installations, use a 3 A fuse
    • For > 24 VDC installations, use a 2.5 A fuse

    Features:
    • Reverse polarity & transient voltage protection per ISO 7637-2
    • Ignition sensing (automatic ON & time-delay OFF)

    Consumption:

    • Idle: 4 W
    • LTE Tx/Tx: 6.25 W
    • Wi-Fi Tx/Rx: 9 W
    • 12 VDC / 2 A adapter recommended

    PHYSICAL

    Size:

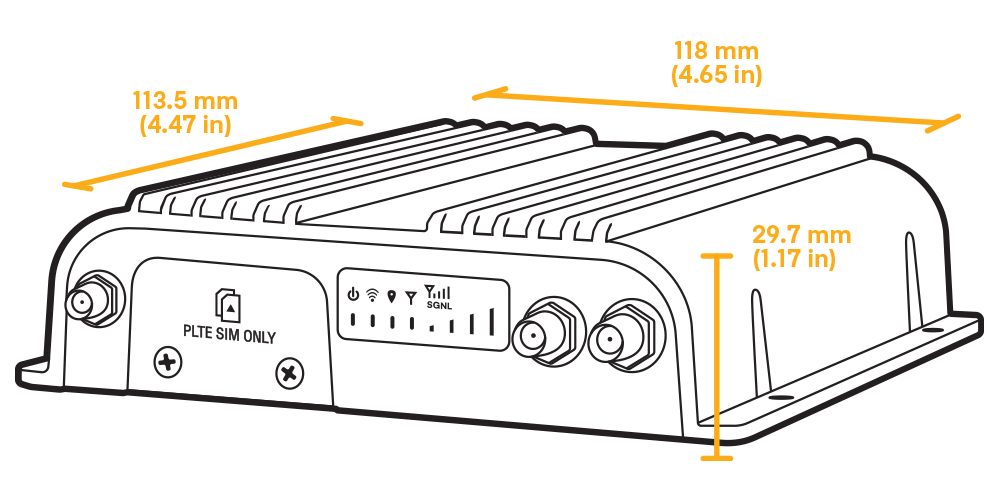

    118 x 113.5 x 29.3 mm (4.6 x 4.5 x 1.2 in)

    Weight:

    .40 kg (14 oz)

    RELIABILITY

    Calculated MTBF:

    1,492,752 hours (Telcordia SR332 at 25 °C)

    CERTIFICATIONS

    Safety:

    UL/cUL, CB Scheme, EN 60950-1, EN 62368-1

    Materials:

    WEEE, RoHS, REACH, California Prop 65

    Wi-Fi:

    Wi-Fi Alliance — 802.11a/b/g/n/ac Wave 2 certified

    Shock/Vibration/Humidity:
    • MIL STD 810G
    • SAEJ1455

    CLOUD SERVICES

    Service Plans:

    NetCloud Service for IoT

    Service Add-Ons:

    NetCloud Exchange, NetCloud Advanced

    Support:

    NetCloud Packages include support for the full subscription term.

    Warranty:

    All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.

    Device Management:

    NetCloud Manager for the full subscription term.

    Software Updates:

    NetCloud Manager for the full subscription term.

    WI-FI POWER:

    FCC:
    • 2402–2483.5 MHz: 28.1 dBm EIRP
    • 5150–5250 MHz: 32.9 dBm EIRP
    • 5725–5850 MHz: 32.8 dBm EIRP

    PERFORMANCE

    Max Router Throughput:

    850 Mbps

    IPSec VPN Throughput:

    30 Mbps

    Concurrent VPN Tunnels:

    10

    Concurrent Sessions (TCP):

    16,000

    Typical Client Count:

    10

    LEDS

    Refer to the R500 Series Enterprise Quick Start Guide

    Performance testing conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect uni-directional UDP traffic with less than 1% packet loss as tested with wired connections.Results do not reflect performance of the cellular wireless operator networks.

    Refer to the R500 Series Enterprise Quick Start Guide
    Enterprise-Class Modem Specifications

      SPECIFICATION

      Technology:

      Cat 7 Advanced LTE (3GPP Rel. 12)

      • Dual SIM slots, mini 2FF form factor
      • Private LTE CBRS SIM cards only

      Peak Downlink Rates:

      300 Mbps

      Peak Uplink Rates:

      75 Mbps

      MIMO:

      2x2 MIMO

      QAM:

      Up to 64

      4G/LTE Bands:

      LTE TDD

      • B41†, B42, B43, B48

      Power:

      LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)

      Antennas:

      SMA and RP-SMA male plugs, maximum torque not to exceed 4 in-lbs

      GNSS/GPS:

      Active GNSS

      • GPS, GLONASS, BeiDou, Galileo
      • DC voltage bias supplied (typical 3.1 V)

      Regulatory:

      FCC Part 96

      Private LTE:

      Yes, includes FCC Part 96 (CBRS OnGo Band 48)

      †Requires minimum NetCloud OS release 7.23.50.

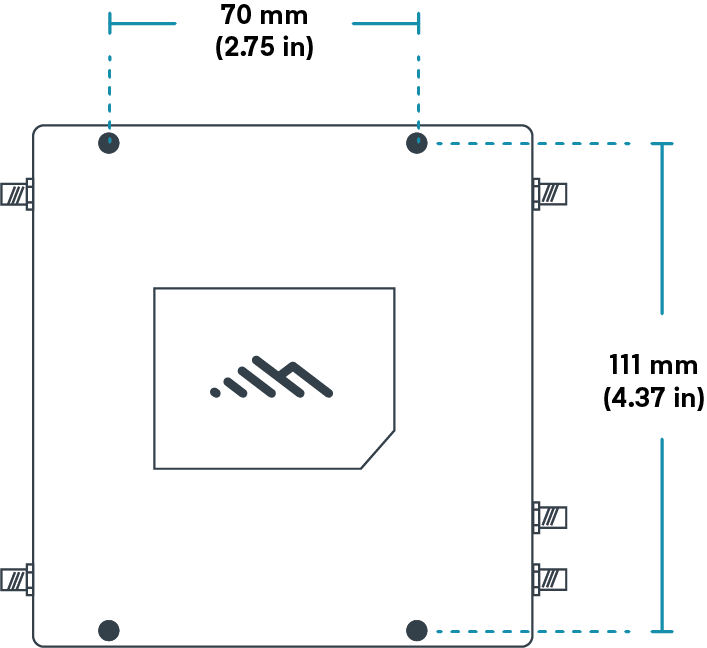

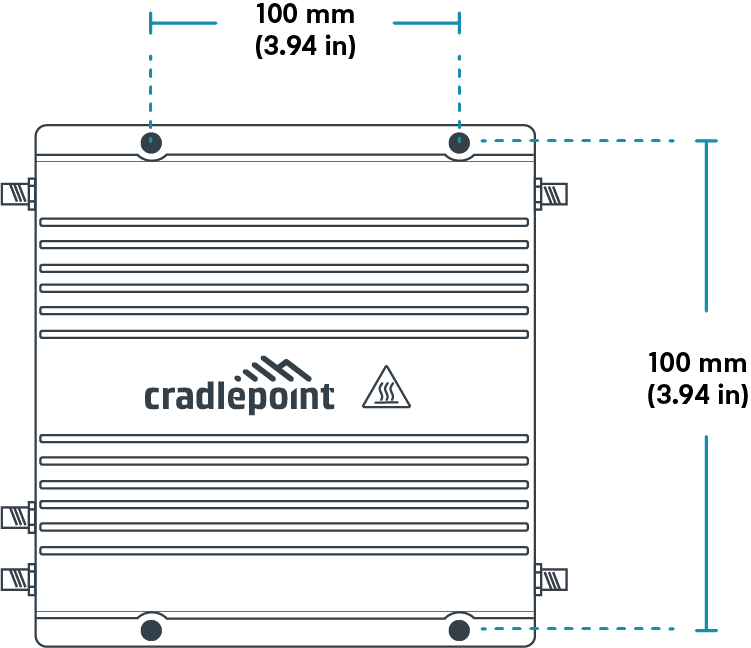

      Physical Measurements & Features

      Features

      SIM Card Info

      Ordering Guide

      NetCloud IoT Essentials packages and plans contain all the features and capabilities required for a broad range of IoT applications. Essentials Packages include 24x7 support (phone support: 24 hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

      For additional capabilities, a NetCloud IoT Advanced Plan can be added to the NetCloud IoT Essentials Package at any time.

      See additional details of what is included in the Essential and Advanced NetCloud software: cradlepoint.com/netcloud-service

      NetCloud Packages for Private Cellular Networks with the R500-PLTE Series Router

        REGION

        MODEM

        IoT PACKAGE PLAN

        PART NUMBER

        North America:
        U.S. & Canada

        Cat 7 with Wi-Fi (300 Mbps)

        Essentials

        TD0y-0500C7C-NN

        Cat 7 with Wi-Fi (300 Mbps); includes AC power supply and antennas

        Essentials + Advanced

        TDAy-0500C7C-NN

        Advanced (requires corresponding Essentials packages)

        TD0x-NCADV

        United States:
        Federal Government

        Cat 7 with Wi-Fi (300 Mbps); includes AC power supply and antennas

        TAA Compliant NC Essentials



        TAA Compliant NC Essentials + Advanced

        TAA-TD0y-0500C7C-NN



        TAA-TDAy-0500C7C-NN

        Renewal:

        Essentials



        Advanced upgrade



        Essentials + Advanced upgrade

        TD0x-NCESS-R



        TD0x-NCADV-R



        TDAx-NCEA-R

        x = 1, 3, or 5 years
        y= 3 or 5 years

        NetCloud Essentials packages and plans contain all the features and capabilities required for a broad range of IoT applications related to Private Cellular Networks. Essentials Packages include 24x7 support (phone support: 24 hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

        For additional capabilities, a NetCloud Advanced upgrade can be added to the NetCloud Essentials Package at any time. See additional details of what is included in the Essential and Advanced NetCloud software: https://cradlepoint.com/products/iot/

        Accessories

          INCLUDED

          PART NUMBER

          Power Supply for North America, 12V, 2x2, 2 meters, -20 °C to 60 °C (-4 °F to 140 °F)

          170864-000

          Ruggedized IoT Only:

          • Cellular Antenna, Black Mini, 600 MHz - 6 GHz, SMA, 140 mm (Qty 2)
          • Wi-Fi Antenna, Charcoal, Dual-Band 2.4/5 GHz, RPSMA, 194 mm (Qty 2)





          170704-002

          170836-000

          OPTIONAL

          PART NUMBER

          Power Supply for North America, 12 V, 2x2, 2 meters

          170716-000

          Power Supply, 12 V, Small 2x2 (C7 line cord not include), -30 °C to 70 °C (-22 °F to 158 °F)

          170869-000

          Power Supply, Vehicle, 12 V, 2x2, 2 meters

          170635-000

          Small 2x2 Power to Barrel Adapter, 152 mm

          170665-000

          GPIO Cable, Small 2x2, Black, 3 meters, 22 AWG

          170585-001

          COR Extensibility Dock†

          170700-000

          GPIO Cable, SATA with Lock, Black, 1.7 meters, -30 °C to 70 °C (-22 °F to 158 °F)

          170680-001

          COR Extensibility Cable, SATA-DB9, Black, 305 mm

          170767-000

          LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile

          • Includes IBR1700 & COR Extensibility Dock doors, no antennas†

          MA-MC400-1200M-B

          UNITED STATES FEDERAL GOVERNMENT

          PART NUMBER

          Power Supply for North America, 12 V, 2x2, 2 meters

          TAA-170716-000

          Power Supply, Vehicle, 12 V, 2x2, 2 meters

          TAA-170635-000

          Small 2x2 Power to Barrel Adapter, 152 mm

          TAA-170665-000

          GPIO Cable, Small 2x2, Black, 3 meters, 22 AWG

          TAA-170585-001

          COR Extensibility Dock†

          TAA-170700-000

          GPIO Cable, SATA with Lock, Black, 1.7 meters

          TAA-170680-001

          LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile

          • Includes IBR1700 & COR Extensibility Dock doors, no antennas†

          TAA-MA-MC400-1200M-B

          †Refer to the Cradlepoint MC400 Modular Modem webpage for more information about modular modems.

          Support & Warranty

          The R500-PLTE router is only sold as components of NetCloud IoT Packages.

          • NetCloud Packages include support for the full subscription term.
          • All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.

          More Information

          Find the most up-to-date information at cradlepoint.com/r500-plte
